Vehicle seating, design and manufacture
Over 35 years of engineering excellence
P r o d u c t   I n f o r m a t i o n
M1
M2
M3
Levl
swivel/fold/tip-up/reclining
More
photos


Product
PDF flyer

  Compliant to ECE Reg.14 (as amended) for category M1, M2 and M3 applications;
Reg.17 For M1 applications with moulded or trimmed headrests.
Vehicle category:
Nr of seats:
Maximum weight:
Example:
Compliant:
M1
8 + 1(driver)
-
Private
motor car
YES
M2
More than 8
Not exceeding 5 tons
Minibus
YES
M3
More than 8
Exceeding 5 tons
Coach
YES


Features
Trim
• 450mm single unit only

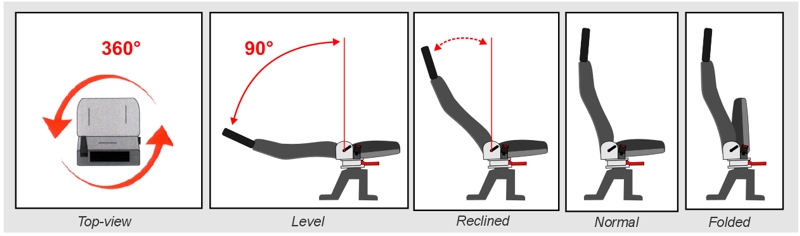

• Easy-action 360° swivelling. 90° locking positions
• Multi-adjustable backrest recliner. Simple lever-action
  actuator
• Available on 230, 250, 280 and 320mm flat bases.
  Variable centres available
• Compliant on Embus, SmartFloor and Innotrax floor
  systems
• Standard lap/diagonal belt. Optional dual belts
• Optional moulded headrest and armrest
To match original material in most vehicles.
Vinyls and moquettes also available.

Trim design service
Our Trim Development team can produce unique designs to order. A huge selection of woven cloths, moquettes, vinyls and leathers is available to choose from. Specialist stitching, panel shaping and upholstery effects can be incorporated into your design.
Please contact the office sales team , or speak to your Area Sales
Notes
- Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 - FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 - Product improvement may affect specifications.
