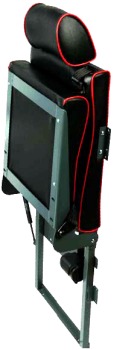

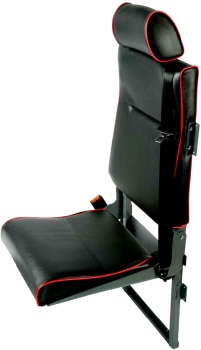

Uplift
semi-high back | tip-up

The Uplift tip-up seat provides high specification, compact seating for applications where it is essential to minimise the overall depth of the seat backrest.  It is available in two widths and a variety of trim styles and will, optionally, accept headrests and twin belts.
More
photos


Product
PDF flyer




Features
Accessories
• Compliant up to M1 when installed rear-facing and
  attached to suitable bulkhead (see note 4)
• Fold-up cushion
• Available as 400 and 450mm single units
• Gas-strut-assisted folding mechanism
• Standard lap/diagonal inertia-reel 3-point belt
• Textured paint finish
• Bulkhead fixing only
• Armrests (see Note 5)
• Headrests

Trim
To match original material in most vehicles.
Vinyls and moquettes also available.
Trim design service
Our Trim Development team can produce unique designs to order. A huge selection of woven cloths, moquettes, vinyls and leathers is available to choose from. Specialist stitching, panel shaping and upholstery effects can be incorporated into your design.
Please contact the office sales team , or speak to your Area Sales

Dimensions (for guidance only)

Notes
1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
4 Non-compliant when installed forward-facing, side facing or rear facing if not attached to compliant bulkhead
5  Armrests only available in conjunction with webbing seat-belt stalk.
