P r o d u c t   I n f o r m a t i o n
M1
M2
M3
Nevis
high back

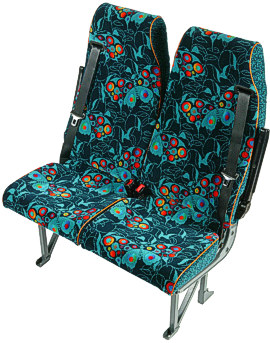

Nevis complements, visually and technically, the Rescroft Defender range, the higher backrest creating an even more comfortable product. It offers the highest level of passenger safety and is compliant up to M1 standard. For M2 or M3 vehicles, it is available as single, double and treble units: for M1 vehicles, as singles and doubles.(5)  For maximum comfort, the belt exits at shoulder level, from the front of the seat, whilst the extra height eliminates the need for separate headrests. An ABS back is a standard feature of this high-specification product.
More
photos


Product
PDF flyer


  Compliant to Reg 14 and Reg 80 for category  M2/M3 applications
[Type Approval  No. 00870000-80R]
Vehicle category:
Nr of seats:
Maximum weight:
Example:
Compliant:
M1
8 + 1(driver)
-
Private
motor car
NO
M2
More than 8
Not exceeding 5 tons
Minibus
YES
M3
More than 8
Exceeding 5 tons
Coach
YES


Features
Accessories
• Minimised seat pitch measurement
• Compliant on EmbusTM, AMF, SmartFloor,
   Handi Floor and Innotrax floor systems
• ABS back
• Compliant on various quick-release fittings
• Variable leg centres and a choice of leg rake
• Standard lap/diagonal, inertia reel belt
   fully integrated
• Choice of belt
• Optional flexible seat belt buckle
• Optional twin-belt, retractable harness system
• Optional ISOfix connection
• Armrests
• Quick-release fittings
• Rear/top grab-handle
• Map nets

Bases
All seats are supplied with legs. Braced bases are available for use with quick-release fittings.

Trim
To match original material in most vehicles.
Vinyls and moquettes also available.
Trim design service
Our Trim Development team can produce unique designs to order. A huge selection of woven cloths, moquettes, vinyls and leathers is available to choose from. Specialist stitching, panel shaping and upholstery effects can be incorporated into your design.
Please contact the office sales team , or speak to your Area Sales

Dimensions (for guidance only)

Nevis - Dimensions
Notes
1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
* Check fixing centres with Rescroft Sales
